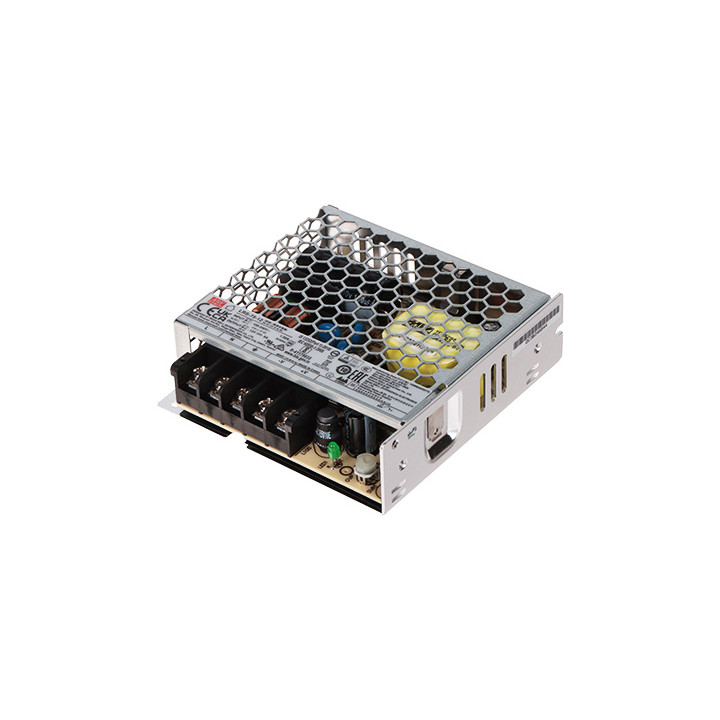

MEAN WELL LRS-75-12 75W 12V Single Output Switching Power Supply

MEAN WELL LRS-75-12 75W 12V Single Output Switching Power Supply

€20.06
Tax excluded
Incl. 21% VAT: 24,27 €
Buy MEAN WELL LRS-75-12 75W 12V AC/DC switching power supply. High efficiency, compact size, reliable performance for industrial and LED applications.

The MEAN WELL LRS-75-12 is a high-performance 75W single output switching power supply with a 12V DC output. It features a compact 1U low profile design, making it ideal for space-constrained applications such as industrial control systems, LED lighting, and automation equipment.

  • High Efficiency: Up to 86.5% efficiency reduces energy loss and heat generation.
  • Universal AC Input: Full range 85-264 VAC or 120-370 VDC input for worldwide use.
  • Protections: Short circuit, overload, and over voltage protection ensure safe operation.
  • Compact Size: 99 x 97 x 30 mm (1U low profile) fits easily into tight spaces.
  • Wide Operating Temperature: -30°C to +70°C with derating, suitable for harsh environments.

Ideal for powering LED strips, controllers, and small industrial devices. This power supply is a reliable and cost-effective solution for your 12V DC needs.

  • Reference
    LRS-75-12
  • In stock
    999 Items
  • EAN13
    5902887089909
  • MPN
    LRS-75-12

  • Dimensions
    99 x 97 x 30 mm
  • Operating temperature
    -30 to +70 °C
  • Weight
    0.3 kg
  • Output voltage
    12 V
  • Protection
    Short circuit, Overload, Over voltage
  • Input voltage range
    85-264 VAC / 120-370 VDC
  • Output power
    75 W
  • Output current
    6.25 A
  • Efficiency
    86.5 %
  • Brand
    MEAN WELL
  • Model
    LRS-75-12
  • SKU
    LRS-75-12
  • Product Type
    AC/DC power supply
  • EAN
    5902887089909
