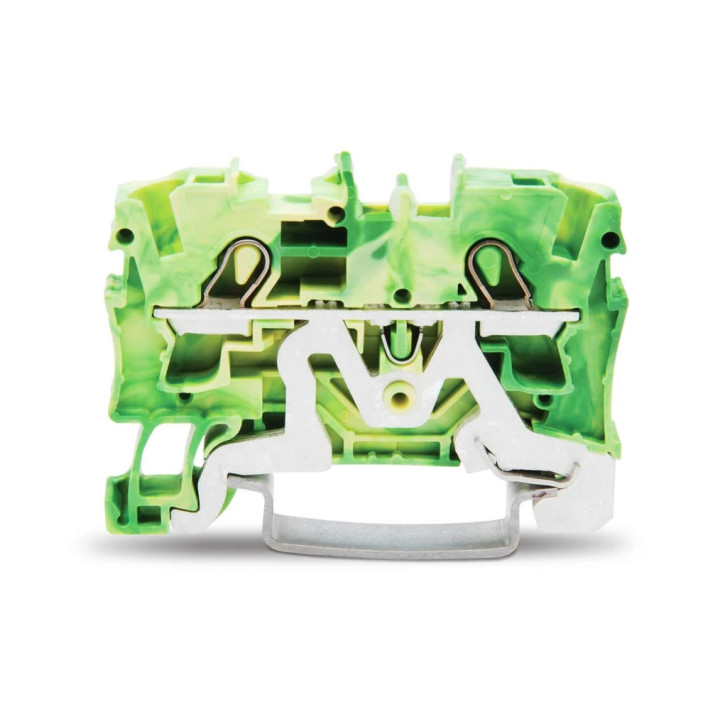

1P Spring Clamp Terminal Block 2-Contact 4 mm² Yellow-Green

Regular price: €2.55 (Save €1.90)
Price: €0.65
Tax included
Single-phase spring clamp terminal connector, 2 contacts, DIN rail mount. Accepts 0.5-6 mm² solid/stranded wire. PEN capable. IP20.
Product availability: Sold out
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Orders with products worth less than 10,00 € get a 3,00 € handling fee. Order at least 16 pcs or add other items and no fee applies.

Spring clamp terminal block for DIN rail installation. Single-phase (1P) configuration with 2 spring clamp contact positions. Suitable for 0.5-6 mm² solid or stranded wires (with appropriate ferrule sizing).

  • 2 spring clamp terminal positions per phase
  • PEN (protective earthing/neutral) capable
  • DIN rail 55 mm mounting
  • Operating temperature to 105°C
  • Thermoplastic insulating body
  • Accepts unsheathed fine stranded wire 0.5-6 mm²

  • Reference
    ALY266
  • EAN13
    4017332071345
  • MPN
    ALY266

  • Operating temperature
    105 °C
  • Mounting
    DIN rail 55 mm
  • Height
    52.3 mm
  • Terminal type
    Spring clamp terminals
  • Width
    6.2 mm
  • PEN function capable
    Yes
  • Stranded wire capacity (no ferrule)
    0.5 - 6 mm²
  • Stranded wire capacity (with ferrule)
    0.75 - 4 mm²
  • Solid wire capacity
    1 - 6 mm²
