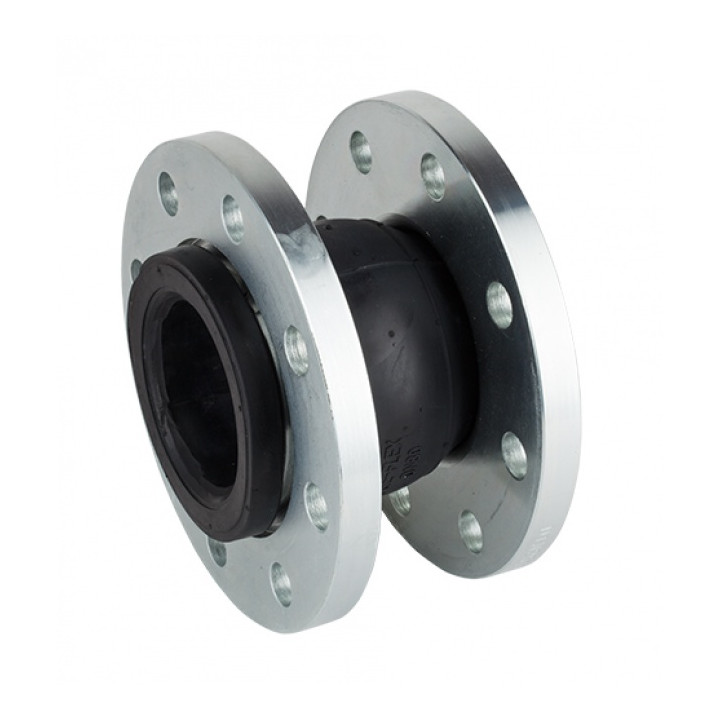

GENEBRE DN40 Rubber Expansion Joint Flange PN10

GENEBRE DN40 Rubber Expansion Joint Flange PN10

34,26 € (Save 14,59 €)
19,67 €
Tax excluded
IVA 21% incl.: 23,80 €
Rubber expansion joint DN40, flange connection, PN10 rating, −10 to +105°C operating range.

GENEBRE rubber expansion joint for piping systems. DN40 (1½") nominal diameter with flange connections. Accommodates thermal expansion and contraction in heating circuits. PN10 pressure rating; maximum working pressure 16 bar; maximum vacuum 400 mbar; burst pressure 30 bar. Operating temperature range −10°C to +105°C.

  • DN40 (1½") flange connection
  • Rubber construction for vibration dampening
  • PN10 pressure rating (16 bar max)
  • Temperature range −10 to +105°C
  • Handles thermal expansion/contraction

  • Reference
    AFR418
  • MPN
    AFR418

  • Material
    rubber
  • Connection type
    flange
  • Temperature range
    −10 to +105 °C
  • Pressure rating
    PN10
  • Nominal diameter
    DN40
  • Max working pressure
    16 bar
  • Burst pressure
    30 bar
  • Max vacuum
    400 mbar
