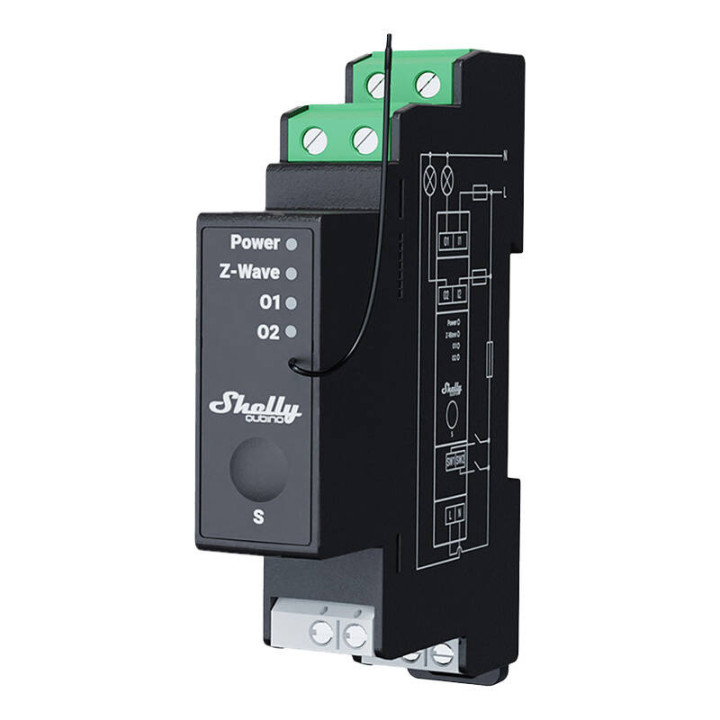

Shelly WavePro2PM DIN Rail Relay, 2-Channel, Z-Wave with Energy Metering

Shelly WavePro2PM DIN Rail Relay, 2-Channel, Z-Wave with Energy Metering

85,09 €
Tax excluded
TVA 21% incluse : 102,96 €
Control lighting and devices with Shelly WavePro2PM Z-Wave relay. 2 channels, 16A each, energy metering, DIN rail mount. Smart home automation.
Last items in stock

The Shelly WavePro2PM is a 2-channel DIN rail relay with energy metering, designed for smart home automation. It features potential-free contacts for flexible control of lighting, heating, ventilation, and other electrical devices. With a load capacity of up to 16 A per channel (25 A total) and support for 110-240 V AC, it handles demanding loads reliably. The built-in energy metering function tracks consumption, helping you reduce electricity bills.

  • Z-Wave communication for seamless integration with smart home systems
  • 2 independent channels with potential-free contacts
  • Energy metering for real-time power monitoring
  • DIN rail mounting for easy installation in distribution boards
  • Overheating, overload, and overvoltage protection for safe operation
  • Compact design: 94 x 19 x 69 mm

Use the Shelly app or any Z-Wave controller to create schedules, scenes, and automation sequences. Perfect for residential and commercial applications.

  • Reference
    063548
  • In stock
    1 Item
  • ean13
    3800235269121
  • MPN
    WavePro2PM

  • IP rating
    IP20
  • Dimensions
    94 x 19 x 69 mm
  • Communication protocol
    Z-Wave
  • Weight
    75 g
  • Mounting type
    DIN rail
  • Housing material
    Plastic
  • Humidity
    30 to 70 % RH
  • Max altitude
    2000 m
  • Colour
    Grey
  • Ambient temperature
    -20 to 40 °C
  • Cpu
    Z-Wave S800
  • Power measurement
    Yes
  • Overload protection
    Yes
  • Overvoltage protection
    Yes
  • Rated current
    16 A per channel, 25 A total A
  • Operating voltage
    110 - 240 V AC
  • Rf frequency
    868.4; 865.2; 869.0; 921.4; 908.4; 916; 919.8; 922.5; 919.7-921.7-923.7; 868.1; 920.9 MHz
  • Brand
    Shelly
  • Model
    WavePro2PM
  • SKU
    063548
  • Product Type
    DIN rail relay
  • EAN
    3800235269121
  • Device Type
    Relay module
  • Compatible App / Ecosystem
    Shelly
  • Dry Contact (voltage-free output)
    Yes
  • Voice Control Support
    Yes
  • Number of Gangs / Channels
    2
  • Maximum Load
    3840 W
  • Protection Against Overheating
    Yes
  • Range Indoors
    40 m
  • Z-Wave Amplifier
    Yes
  • Maximum Transmit Power
    25 mW
