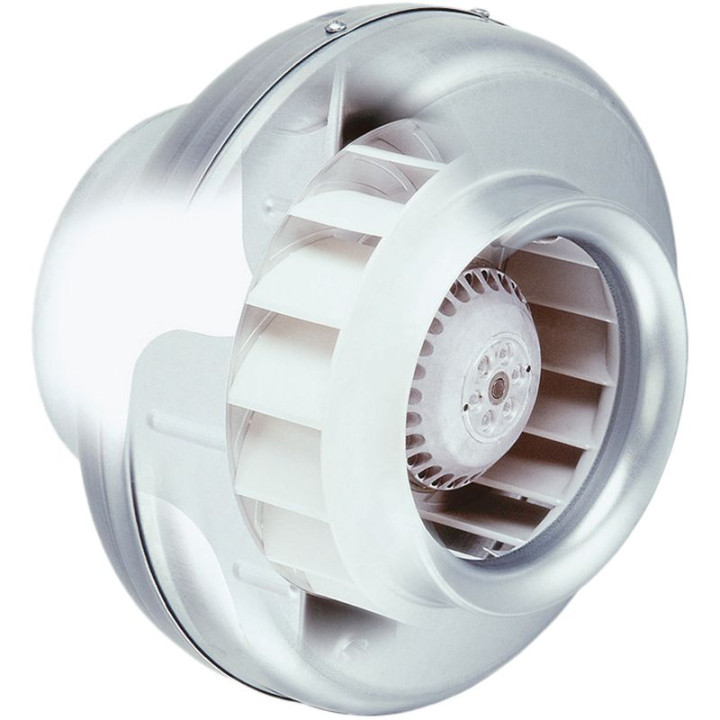

ONNLINE CK 100A duct fan 100mm radial 230V

ONNLINE CK 100A duct fan 100mm radial 230V

113,17 € (Save 42,45 €)
70,72 €
Tax excluded
TVA 21% incluse : 85,57 €
ONNLINE CK 100A radial duct fan, 100mm diameter, 230V, IP44, thermal protection, low noise, 80°C max air temp.

ONNLINE CK 100A radial centrifugal duct fan for residential and light commercial ventilation. Compact 100mm diameter design for easy installation in ductwork. 230V single-phase motor with integrated thermal overload protection. IP44 protection rating suitable for humid environments. Low noise operation maintained even with long ducts and high pressure. Transformer or triac speed control compatible. Supplied pre-connected with junction box. Long, high-pressure ducts do not increase noise levels significantly.

  • Type: Radial centrifugal
  • Diameter: 100mm
  • Supply: 230V single phase
  • Thermal protection: Yes
  • IP rating: IP44 humidity proof
  • Max air: 80°C
  • Weight: 2.6kg

  • Reference
    AAE820
  • ean13
    6438056002336
  • MPN
    AAE820

  • Weight
    2.6 kg
  • Connection type
    Connection box
  • Supply voltage
    230 V
  • Type
    Radial centrifugal duct fan
  • Body material
    Steel
  • Thermal protection
    Yes
  • Max air temperature
    80 °C
  • Protection class (IP)
    IP44
  • Fan diameter
    100 mm
  • Frequency control compatible
    No
