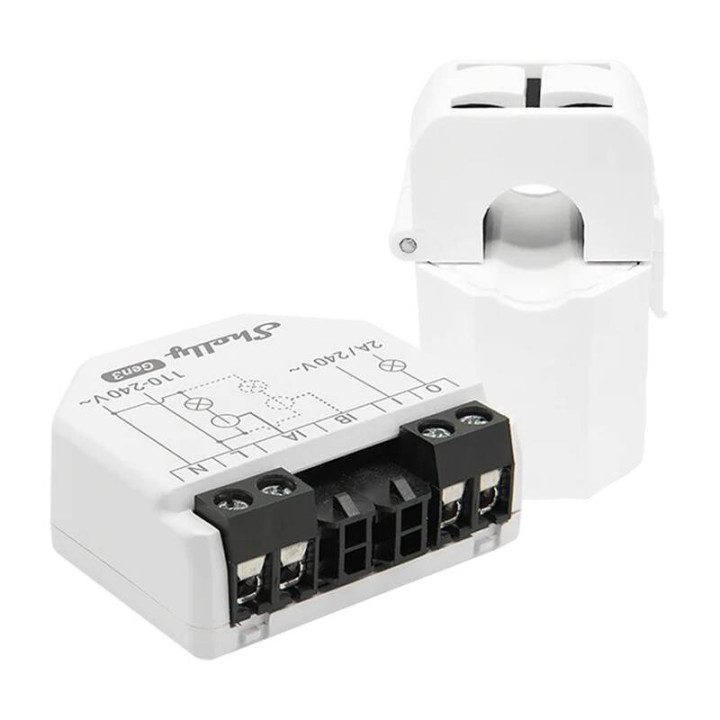

Shelly EM gen3 Energy Measurement Controller

Price: 82,97 €
Tax excluded
IVA 21% inclusa: 100,39 €
Monitor and optimize energy consumption with Shelly EM gen3. Supports Wi-Fi, Bluetooth, Matter. Easy installation, local data storage, and smart scenes.

The Shelly EM gen3 is an advanced energy measurement controller that enables precise monitoring and management of high-power devices. With support for Wi-Fi, Bluetooth, and future Matter technology, it integrates seamlessly into your smart home without requiring an additional hub. The device can monitor up to two current transformers (CT 50A included) and control loads via a built-in voltage-free contact.

  • Energy monitoring – track active/apparent power, energy, and power factor with ±2% accuracy.
  • Local data storage – records data every minute, stores up to 10 days locally, and syncs to cloud for 365-day history.
  • Smart scenes – create automation rules with other Shelly devices.
  • Scripting support – customize functionality and prepare for Matter upgrade.
  • Compact design – fits in standard electrical boxes (37 x 42 x 16 mm).

Ideal for single-phase homes and commercial buildings, the Shelly EM gen3 helps you reduce electricity bills and improve efficiency. Includes: controller, CT 50A clamp, and manual.

  • Reference
    074519
  • In stock
    97 Items
  • ean13
    3800235261873
  • MPN
    EMgen3

  • App / Ecosystem
    Shelly
  • Dimensions
    37 x 42 x 16 mm
  • Communication protocol
    Bluetooth
    Matter
    Wi-Fi
  • Weight
    23 g
  • Energy metering
    Yes
  • Mounting type
    Surface
  • Housing material
    Plastic
  • Wire cross section
    0.2 to 2.5 mm²
  • Wire stripping length
    6 to 7 mm
  • Ambient temperature
    -20 to 40 °C
  • Rated voltage
    110-240 V~ 50/60 Hz
  • Ambient humidity
    30 to 70 % RH
  • Maximum altitude
    2000 m
  • Rated current
    2 A
  • Current accuracy
    ±2% (2-50 A); ±2% (1-2 A); ±5% (0-1 A)
  • Voltage accuracy
    ±2 %
  • Brand
    Shelly
  • Model
    EM gen3
  • SKU
    074519
  • Product Type
    Energy measurement controller
  • EAN
    3800235261873
  • Device Type
    Energy meter
  • Max Measuring / Switching Current
    80 A
  • Smart / Connected
    Yes
  • Breaking Capacity
    6 kA
  • Maximum Tightening Torque
    0.4 Nm
  • Case Color
    White, dark gray
  • Compatible Current Transformers
    CT 50A (included), CT 80A
  • Measurement Functions
    Active and apparent power, active and apparent energy, power factor
