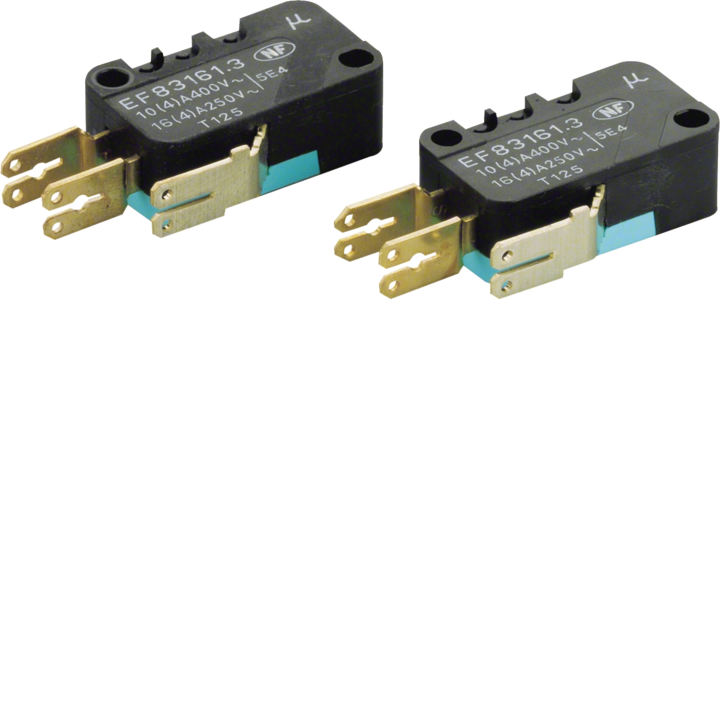

Hager HZ160 Auxiliary Contact 1NO+1NC

Hager HZ160 Auxiliary Contact 1NO+1NC

32,20 €
Tax excluded
Z VAT 21%: 38,96 €
Hager HZ160 auxiliary contact with 1NO+1NC, 6A, 250V, for DIN rail mounting. Ideal for signaling and control circuits.

The Hager HZ160 is a high-quality auxiliary contact switch designed for use with Hager circuit breakers and contactors. It features 1 normally open (NO) and 1 normally closed (NC) contact, rated at 6A / 250V. This auxiliary contact is ideal for remote signaling, status indication, and control applications in electrical distribution systems.

  • 1NO+1NC contact configuration for versatile signaling
  • Rated current: 6A at 250V AC
  • DIN rail mounting for easy installation in distribution boards
  • Screw clamp terminals for secure wiring
  • Compact design: 17.5 mm width

Use the HZ160 to monitor the status of your main circuit breaker or to control auxiliary circuits. Compatible with Hager modular devices.

  • Reference
    HZ160
  • In stock
    800 Items
  • ean13
    3250613361600
  • MPN
    HZ160

  • Mounting
    DIN rail
  • Rated voltage
    250V V
  • Connection type
    Screw clamp
  • Poles
    1P
  • Rated current
    6 A
  • Terminal type
    Indicator / accessory
  • Contact material
    Copper
  • Brand
    Hager
  • Model
    HZ160
  • SKU
    HZ160
  • Product Type
    Auxiliary contact
  • EAN
    3250613361600
  • Dimensions (W x H x D)
    17.5 x 80 x 60 mm
