• New

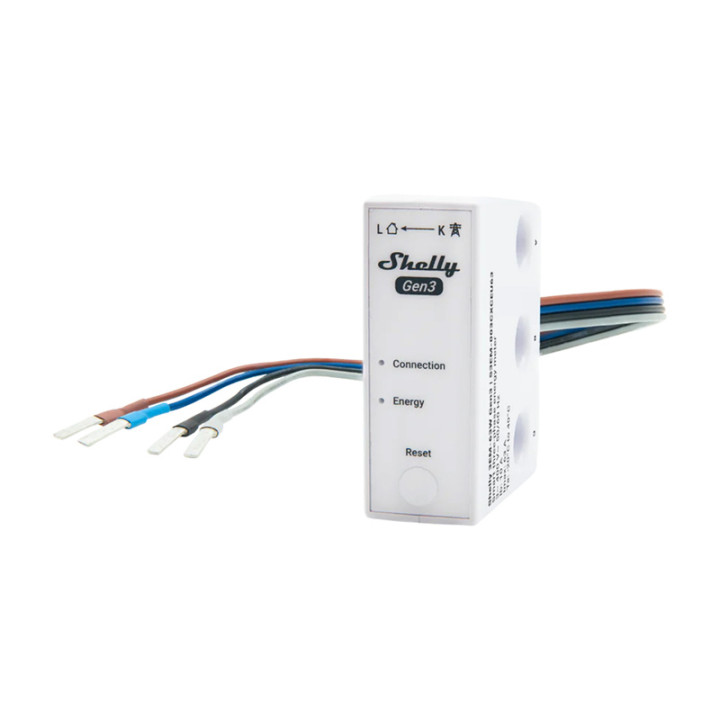

Shelly 3EM-63W Gen3 1/3-Channel WiFi Energy Meter (Wired Model)

Shelly 3EM-63W Gen3 1/3-Channel WiFi Energy Meter (Wired Model)

107,81 €
Tax excluded
Z VAT 21%: 130,45 €
Monitor 3-phase or 3 single-phase circuits with Shelly 3EM-63W Gen3. WiFi, Bluetooth, Class B accuracy. Easy DIN rail installation. Buy now!

The Shelly 3EM-63W Gen3 is a compact 1/3-channel WiFi energy meter designed for monitoring three-phase installations or three independent single-phase circuits. With heavy-duty cables and easy installation, it's ideal for homes, businesses, and PV systems.

  • Versatile monitoring: Supports 3-phase or 3 single-phase lines with 4-quadrant metering for consumed and generated energy.
  • High accuracy: Class B (IEC 62053-21) for voltage, current, power, and energy measurements.
  • Smart connectivity: Wi-Fi and Bluetooth with no gateway needed; works with Shelly Smart Control app, MQTT, HTTP, WebSocket.
  • Data logging: Records at 1-minute intervals, stores locally for at least 7 days.
  • Automation: Up to 20 schedules and webhooks; local automation with no-load threshold (<30 VA per channel).
  • Easy installation: Mounts above or below breakers on DIN rail; includes 260 mm cables.

Perfect for energy management and PV self-consumption optimization. Order your Shelly 3EM-63W Gen3 today!

  • Reference
    077772
  • In stock
    291 Items
  • ean13
    3800235261958
  • MPN
    3EM-63WGen3

  • IP rating
    IP20
  • App / Ecosystem
    Shelly
  • Power supply
    220-240 V~ 50/60 Hz
  • Dimensions
    21 × 54 × 42 mm
  • Communication protocol
    Wi-Fi
  • Operating temperature
    -20 to 40 °C
  • Weight
    58 g
  • Phases
    Three-phase
  • Energy metering
    Yes
  • Mounting type
    Above/Below breaker (flat terminal)
  • Housing material
    Plastic
  • Humidity
    30 - 70 % RH
  • Data export
    CSV, JSON
  • Schedules
    20
  • Webhooks
    20
  • Housing color
    White
  • Led indicators
    Yes
  • Rated voltage
    220-240VAC
  • Encryption
    TLS
  • Cable length
    260 mm
  • Remote switching
    No
  • Temperature sensor
    Yes
  • Button
    Yes (configuration/reset)
  • Rated current
    63 A
  • Compatible with
    Shelly Smart Control app
  • Brand
    Shelly
  • Model
    3EM-63W Gen3
  • SKU
    077772
  • Product Type
    Energy meter
  • EAN
    3800235261958
  • Device Type
    Energy meter
  • Communication Protocols
    Wi-Fi, Bluetooth
  • Max Measuring / Switching Current
    63 A
  • Smart / Connected
    Yes
  • Built-in Display
    No
  • Number of Poles
    3P
  • Data Storage Duration
    7 days
  • Diameter of Conductive Hole
    8 mm
  • Max Installation Altitude
    2000 m
  • External Protection
    63 A
  • Accuracy Class
    Class B (IEC 62053-21)
  • Measurement Parameters
    Voltage, current, active/apparent power, power factor, energy
  • Quadrant Metering
    4-quadrant
  • Data Logging Interval
    1 min
  • Built-in Clock
    Yes
  • API Support
    MQTT, HTTP, WebSocket
  • OTA Updates
    Yes
