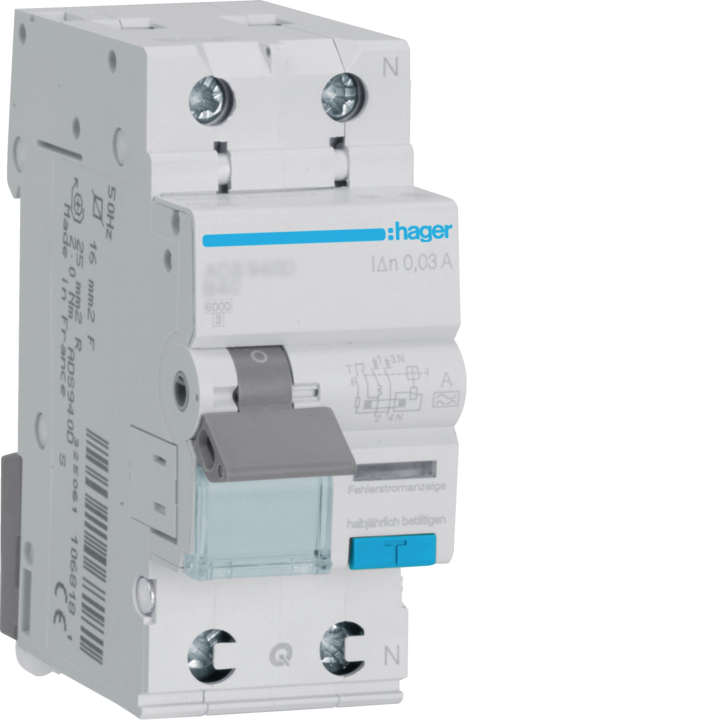

Hager ADS925D RCBO 1P+N 6kA B-25A 30mA Type A

Hager ADS925D RCBO 1P+N 6kA B-25A 30mA Type A

€50.52
Tax excluded
Incl. 21% VAT: 61,13 €
Hager ADS925D RCBO, 1P+N, 6kA, B-curve 25A, 30mA Type A residual current protection. Reliable and compact for your distribution board.

The Hager ADS925D is a combined residual current circuit breaker (RCBO) with overcurrent and earth leakage protection in a single 2-module device. Rated at 25A with a B tripping curve and 6kA breaking capacity, it provides reliable protection for circuits in residential and commercial installations. The integrated 30mA Type A RCD ensures protection against sinusoidal and pulsating DC fault currents.

  • Combined MCB/RCBO in 1P+N configuration
  • Rated current: 25A, trip curve B
  • Breaking capacity: 6kA (Icn)
  • Residual current: 30mA, Type A
  • Compact 2-module width for space-saving installation
  • Suitable for 230V AC, 50/60Hz systems

Ideal for final circuits requiring both overload and earth leakage protection, the Hager ADS925D is a reliable choice for modern distribution boards.

  • Reference
    ADS925D
  • In stock
    800 Items
  • EAN13
    3250611068167
  • MPN
    ADS925D

  • IP rating
    IP20
  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
    B
  • Rcd type
    A
  • Terminal type
    Screw
  • Brand
    Hager
  • SKU
    ADS925D
  • Product Type
    RCBO (combined)
  • EAN
    3250611068167
  • Model / Reference
    ADS925D
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    25 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
  • Tripping / Time Delay Class
    Instantaneous
