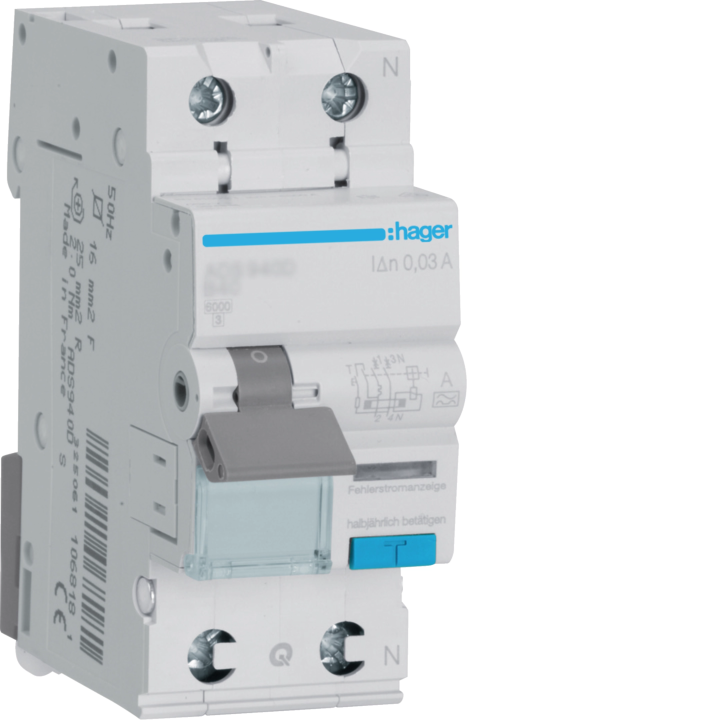

Hager ADS982D RCBO 1P+N 6kA C-32A 30mA Type A

Hager ADS982D RCBO 1P+N 6kA C-32A 30mA Type A

€68.99
Tax excluded
Incl. 21% VAT: 83,48 €
Hager ADS982D RCBO: 1P+N, 6kA breaking capacity, C-32A curve, 30mA Type A RCD. Reliable protection for electrical circuits. Buy now!

The Hager ADS982D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for residential and commercial electrical installations. It integrates a 32A MCB with C trip curve and a 30mA Type A RCD in a compact 1P+N module.

  • Rated current: 32A
  • Breaking capacity: 6kA
  • Residual current: 30mA, Type A (sensitive to pulsating DC)
  • Poles: 1P+N
  • Curve: C (for moderate inrush currents)
  • Mounting: DIN rail 35mm

Ideal for protecting circuits against overloads, short circuits, and earth faults. Ensure safety and compliance with modern electrical standards.

  • Reference
    ADS982D
  • In stock
    800 Items
  • EAN13
    3250611068259
  • MPN
    ADS982D

  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
    C
  • Rcd type
    A
  • Brand
    Hager
  • SKU
    ADS982D
  • Product Type
    RCBO (combined MCB/RCD)
  • EAN
    3250611068259
  • Model / Reference
    ADS982D
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    32 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
