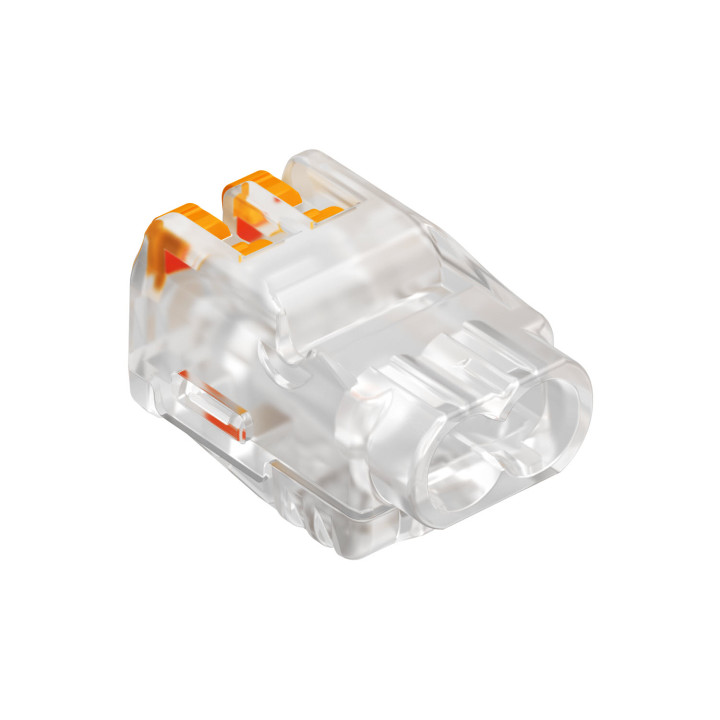

OBO BETTERMANN 61 225 FL 2-Position Terminal Connector

OBO BETTERMANN 61 225 FL 2-Position Terminal Connector

OBO BETTERMANN
0,22 € (Sparen Sie 0,10 €)
0,12 €
zzgl. MwSt.
Inkl. 21% MwSt.: 0,15 €
Two-position screw terminal connector rated 450 V / 24 A, accepts solid and flexible wires 0.2-2.5 mm², fire-resistant polycarbonate.
Auf Bestellung

OBO BETTERMANN 61 225 FL is a two-position screw terminal connector with release lever for easy wire connection. Rated at 450 V and 24 A, accepting solid, flexible, and stranded conductors 0.2–2.5 mm². Tested to EN 60998 and DIN 695.

  • Two terminal positions with release lever
  • 450 V rated voltage, 24 A rated current
  • Wire range 0.2–2.5 mm² (solid or flexible)
  • Halogen-free polycarbonate construction
  • Fire-resistant to 850°C per DIN 695

  • Marke
  • Artikel-Nr.
    CBZ867
  • ean13
    4012196334629
  • Hersteller-Teilenummer (MPN)
    CBZ867

  • Rated voltage
    450 V
  • Rated current
    24 A
  • Terminal type
    Screw terminal connector
  • Standard
    EN 60998
  • Color
    Colorless
  • Suitable for solid wire
    Yes
  • Number of Positions
    2
  • Wire Section Range
    0.2-2.5 mm²
  • Suitable for Flexible Wire
    Yes
  • Suitable for Stranded Wire
    Yes
