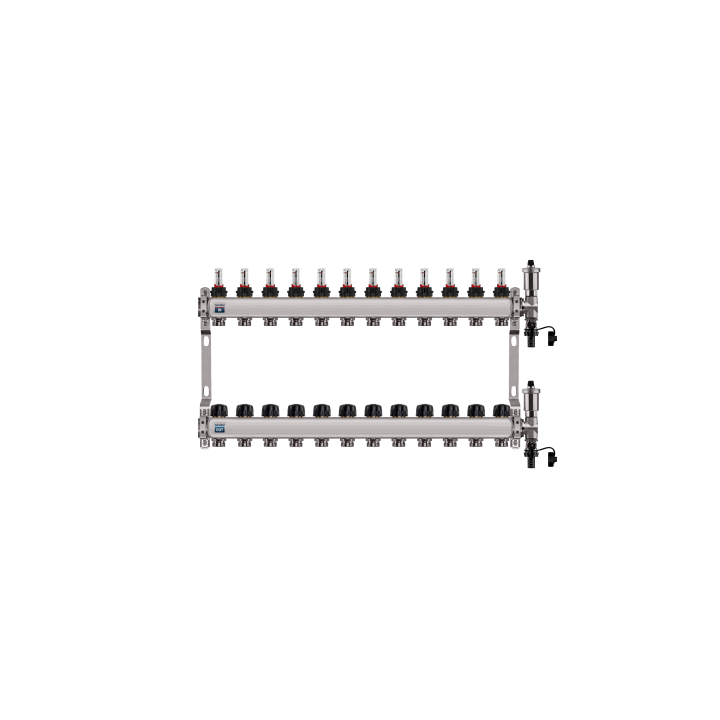

ONNLINE DPP729 Stainless Steel Floor Heating Manifold 12-Loop

ONNLINE DPP729 Stainless Steel Floor Heating Manifold 12-Loop

ONNLINE
149,60 € (Économisez 61,98 €)
87,62 €
HT
TVA 21% incluse : 106,02 €
Stainless steel manifold for floor heating, 12 loops, DN25 inlet, 6 bar rated, includes return air valve and flow meters.
Sur commande

ONNLINE stainless-steel (INOX) manifold for radiant floor heating systems. 12-loop configuration with 1" (DN25) BSPP inlet, DN25 outlet connections. Rated to 6 bar (0.6 MPa), max 70°C operation. Includes automatic air-release valve, drain valve, and flow meters per loop. Uniform distribution ensures stable system performance and energy efficiency.

  • 12-loop stainless-steel manifold
  • DN25 inlet and outlet
  • 6 bar (0.6 MPa) rated
  • Automatic air bleed valve included
  • Analog flow meters per loop
  • Suitable for both heating and cooling

  • Marque
  • Référence
    DPP729
  • EAN13
    5905997505819
  • MPN
    DPP729

  • Material
    Stainless steel
  • Weight
    7.59 kg
  • Max working pressure
    6 bar
  • Water content
    21.42 l
  • Suitable for cooling
    Yes
  • Mixing valve
    No
  • Number of loops
    12
  • Flow Measurement
    Analog
  • Primary connection type
    2-pipe
  • Fluid temperature
    70 °C
  • Connection position
    Left / Right
  • Primary inlet type
    BSPP-G female thread ISO 228-1
  • Primary inlet diameter
    1"
  • Outlet diameter
    25 mm
  • Primary inlet valves
    No
  • Temperature limiter
    No
  • Check valve
    No
  • Circulation pump
    No
