ATTE xPoE-6-11-S2 6-Port PoE Switch (5 PoE + 1 Uplink)

ATTE xPoE-6-11-S2 6-Port PoE Switch (5 PoE + 1 Uplink)

ATTE
83,20 €
HT
TVA 21% incluse : 100,67 €
Buy ATTE xPoE-6-11-S2 6-port PoE switch with 5 PoE outputs, Long Range up to 280m, 10-56VDC input, electronic protection. Ideal for IP cameras.
Livraison : 5 jours ouvrés

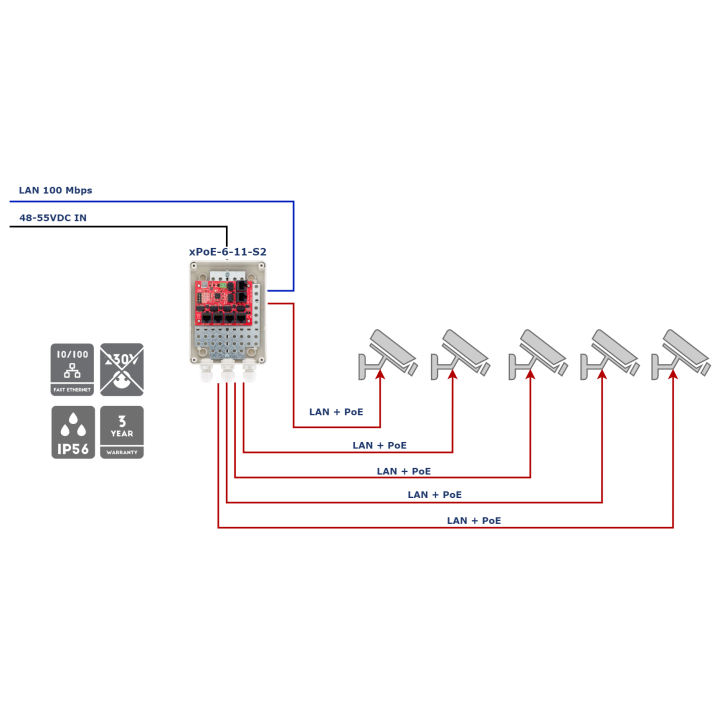

The ATTE xPoE-6-11-S2 is a versatile 6-port PoE switch designed for IP surveillance systems. It features 5 PoE outputs (802.3at/af or Passive) and one uplink port, with a wide input voltage range of 10-56VDC. The switch offers two operating modes: Standard (100m range, 10/100 Mbps) and Long Range (up to 280m, 10 Mbps on ports 1-4). Each PoE channel has independent electronic fuse protection with auto recovery. The switch can be powered via screw terminals or from another Passive PoE switch, supporting cascade connections. Housed in a rugged IP56-rated enclosure with UV-resistant plastic, it includes 6x M16 cable glands and mounting brackets for easy installation.

  • 5 PoE ports with 802.3at/af and Passive support
  • Long Range mode extends transmission up to 280m
  • Wide input voltage 10-56VDC, output equals input
  • Up to 70W on LAN 5 PoE IN/OUT port
  • Electronic protection per channel against short circuit and overload
  • IP56 enclosure with UV-resistant plastic and cable glands

Ideal for powering IP cameras and network devices in outdoor or industrial environments. The switch is plug-and-play with no configuration required.

  • Marque
  • Référence
    xPoE-6-11-S2
  • En stock
    999 Produits
  • MPN
    xPoE-6-11-S2

  • IP rating
    IP56
  • Power consumption
    Very low
  • Poe standard
    802.3at/af, Passive
  • Mounting
    Raster system (compatible with 10.8mm grid)
  • Output voltage
    Same as input
  • Protection
    Electronic fuse per PoE channel, short circuit, overvoltage
  • Poe ports
    5
  • Input voltage range
    10...56 VDC
  • Included accessories
    2 mounting brackets
  • Number of ports
    6
  • Enclosure material
    High-quality plastic, UV resistant
  • Cable glands
    6x M16
  • Brand
    ATTE
  • Model
    xPoE-6-11-S2
  • SKU
    xPoE-6-11-S2
  • Product Type
    PoE Switch
  • Max Power per Port (Other PoE)
    40 W
  • Uplink Port
    1
  • Max Power per Port (LAN 5)
    70 W
  • Ethernet Speed (Standard Mode)
    10/100 Mbps
  • Ethernet Speed (Long Range Mode)
    10 Mbps (ports 1-4), 10/100 Mbps (ports 5-6)
  • Max Range (Standard Mode)
    100 m
  • Max Range (Long Range Mode)
    280 m
