Shelly Pro Dual Cover PM SPSH-002PE16EU DIN Rail Smart Shutter Controller with Power Measurement

Price: 103,05 €
Tax excluded
TVA 21% incluse : 124,69 €
Control blinds, curtains, and gates with Shelly Pro Dual Cover PM. 16A per channel, power measurement, Wi-Fi & Bluetooth. Easy DIN rail mount.

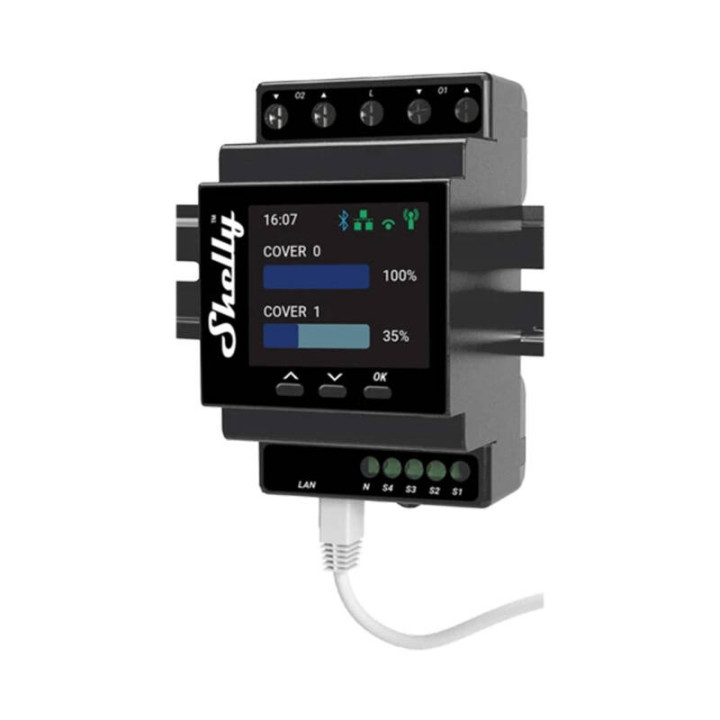

The Shelly Pro Dual Cover PM (SPSH-002PE16EU) is a professional dual-channel smart controller designed for DIN rail mounting, ideal for automating blinds, shutters, curtains, awnings, and gates. Each channel supports up to 16 A load and features built-in power measurement for precise energy monitoring.

  • Dual channel control – independently operate two covers or shutters
  • Integrated power meter – track energy consumption per channel
  • Wi-Fi & Bluetooth – 802.11 b/g/n and Bluetooth 4.2 for flexible connectivity
  • Wide voltage range – AC 110–240 V supply
  • DIN rail mount – fits standard electrical cabinets
  • Smart automations – create custom scenes via Shelly app or scripts
  • Compact size – 96 x 53 x 59 mm, 2-module width

Perfect for residential and commercial installations, the Shelly Pro Dual Cover PM brings intelligence and energy savings to your motorized coverings.

  • Reference
    059212
  • In stock
    124 Items
  • ean13
    3800235268124
  • MPN
    ProDualCover

  • App / Ecosystem
    Shelly
  • Dimensions
    96 x 53 x 59 ±0.02 mm
  • Communication protocol
    Wi-Fi
  • Weight
    150 g
  • Energy metering
    Yes
  • Mounting type
    DIN Rail
  • Humidity
    30 to 70 % RH
  • Ambient temperature
    -20 to 40 °C
  • Internal temperature sensor
    Yes
  • Bluetooth protocol
    4.2
  • Cpu
    ESP32-D0WDQ6
  • Flash memory
    8 MB
  • Rated voltage
    110-240 V AC
  • Remote switching
    Yes
  • Maximum altitude
    2000 m
  • Rated current
    16 A
  • Brand
    Shelly
  • Model
    SPSH-002PE16EU
  • SKU
    059212
  • Product Type
    Smart controller / shutter controller
  • EAN
    3800235268124
  • Device Type
    Smart breaker / controller
  • Max Measuring / Switching Current
    16 A
  • Smart / Connected
    Yes
  • DIN Module Width
    2 modules
  • Wi-Fi Protocol
    802.11 b/g/n
  • Bluetooth Range (Indoor)
    10 m
  • Bluetooth Range (Outdoor)
    30 m
  • Wi-Fi Range (Indoor)
    30 m
  • Wi-Fi Range (Outdoor)
    50 m
  • Voltmeter (AC)
    Yes
  • Amperemeter (AC)
    Yes
