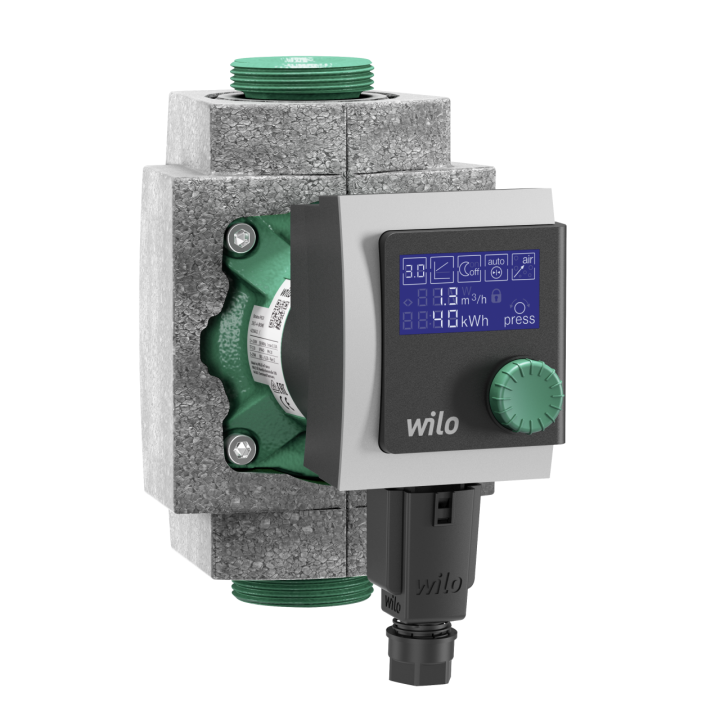

WILO STRATOS PICO 25/1-4 circulation pump EC motor 180mm ALJ101

WILO STRATOS PICO 25/1-4 circulation pump EC motor 180mm ALJ101

WILO
314,86 €
HT
TVA 21% incluse : 380,98 €
WILO STRATOS PICO energy-efficient circulation pump with EC motor, 1.72 m³/h, 230V single-phase, 0.26A, 10 bar max, integrated electronics. Smart heating control.
Sur commande

Advanced WILO STRATOS PICO circulation pump combining EC motor technology with intelligent control. Ideal for modern heating systems with precise flow adjustment via LC display.

  • Rated capacity 1.72 m³/h, max 3.15 m³/h
  • Cast iron GG 20 housing
  • EC motor with integrated power regulation
  • Max working pressure 10 bar
  • 230V single-phase, 50/60 Hz
  • Integrated flow and energy monitoring
  • Automatic dry-run protection

  • Marque
  • Référence
    ALJ101
  • EAN13
    4048482754505
  • MPN
    ALJ101

  • Weight
    2.264 kg
  • Voltage
    230 V
  • Housing material
    Cast iron GG 20
  • Frequency
    50/60 Hz
  • Current
    0.26 A
  • Brand
    WILO
  • Model
    ALJ101
  • Max Pressure
    16.85 kPa
  • Max working pressure
    10 bar
  • Rated Capacity
    1.72 m³/h
  • Pump model
    STRATOS PICO 25/1-4
  • Max static head
    4.043 m
