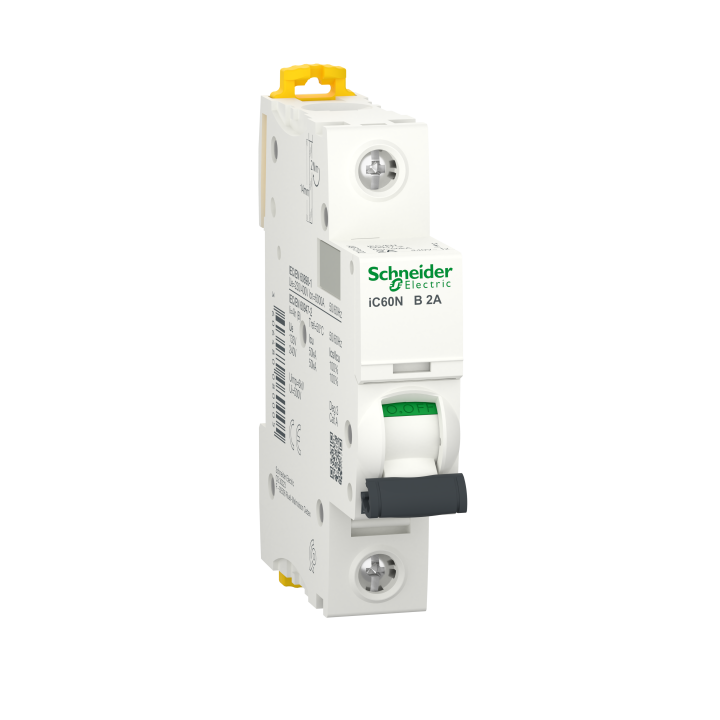

SCHNEIDER ELECTRIC iC60N 1P 2A B Circuit Breaker

SCHNEIDER ELECTRIC iC60N 1P 2A B Circuit Breaker

Schneider Electric
6,86 €
HT
TVA 21% incluse : 8,30 €
SCHNEIDER ELECTRIC iC60N 1-pole 2A B-characteristic miniature circuit breaker. 230 V rated, 6 kA Icn, 50 kA Icu breaking capacity.
Sur commande

SCHNEIDER ELECTRIC iC60N is a compact miniature circuit breaker (MCB) designed for reliable protection of electrical circuits in residential and small commercial installations. The B-characteristic provides fast breaking for circuits with lower inrush currents.

  • 1-pole configuration for single-phase circuits
  • 2 A rated current with B-characteristic tripping
  • 230 V AC rated voltage
  • 6 kA breaking capacity (Icn) per EN 60898
  • 50 kA ultimate breaking capacity (Icu) per IEC 60947-2
  • 50–60 Hz frequency range
  • Current limiting class 3
  • IP protection class 4
  • Compact DIN rail mounting

  • Marque
  • Référence
    CKS375
  • EAN13
    3606480080005
  • MPN
    CKS375

  • Frequency
    50 – 60 Hz
  • Rated voltage
    230 V
  • Rated current
    2 A
  • Number of Poles
    1
  • IP protection class
    4
  • Circuit breaker type
    MCB (Miniature Circuit Breaker)
  • Tripping characteristic
    B
  • Breaking capacity Icn (EN 60898) at 230 V
    6 kA
  • Ultimate breaking capacity Icu (IEC 60947-2) at 230 V
    50 kA
  • Current limiting class
    3
