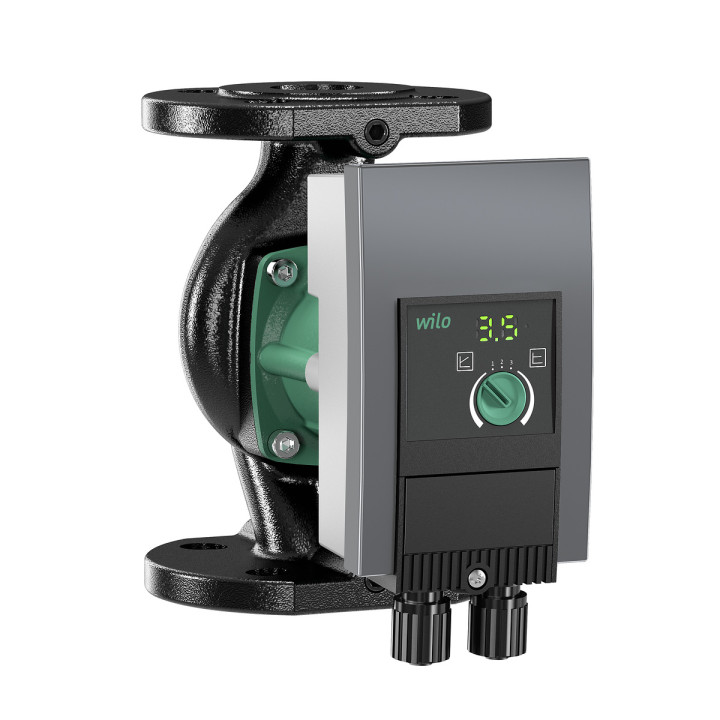

WILO YONOS MAXO 40/0.5-8 Circulation Pump PN6/10

WILO YONOS MAXO 40/0.5-8 Circulation Pump PN6/10

WILO
1 442,88 €
HT
TVA 21% incluse : 1 745,88 €
WILO ANI301 YONOS MAXO 40/0.5-8 circulation pump, 0.3 kW, EC motor, 10.23 m³/h nominal flow, 10 bar maximum pressure.
Livraison : 5 jours ouvrés

Energy-efficient circulation pump with EC synchronous motor that automatically adjusts power consumption based on system requirements. Ideal for heating circuits, air conditioning, and closed cooling loops.

  • Nominal flow 10.23 m³/h
  • Maximum pressure 10 bar
  • 0.3 kW EC motor with automatic power control
  • Single-phase 50/60 Hz operation
  • Cast iron body, polypropylene impeller
  • Maximum static head 8.5 m

  • Marque
  • Référence
    ANI301
  • En stock
    999 Produits
  • EAN13
    4048482235936
  • MPN
    ANI301

  • Weight
    9.2 kg
  • Frequency
    50/60 Hz
  • Phase
    Single-phase
  • Nominal Current
    1.33 A
  • Nominal flow rate
    10.23 m³/h
  • Maximum flow rate
    18.08 m³/h
  • Maximum static head
    8.509 m
  • Pump body material
    Cast iron GG 25 (GJL-250)
  • Impeller material
    Polypropylene (PP-GF)
  • Maximum working pressure
    10 bar
  • Motor power input
    0.3 kW
