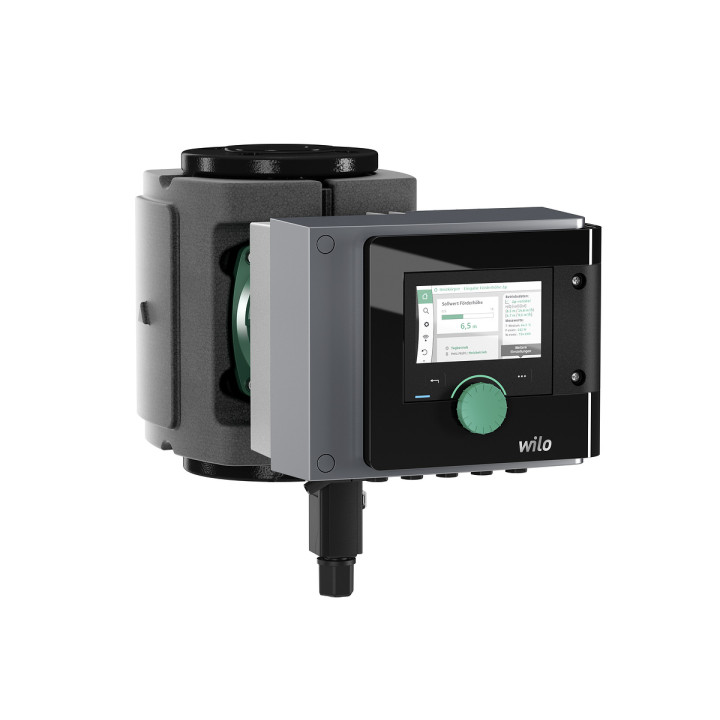

Smart Circulation Pump WILO Stratos Maxo 40/0.5-12 CPC767

Smart Circulation Pump WILO Stratos Maxo 40/0.5-12 CPC767

WILO
2 446,07 €
HT
TVA 21% incluse : 2 959,74 €
Intelligent circulation pump for heating and cooling systems. 0.57kW, EC motor with electronic power adaptation. High efficiency EEI 0.17, cast iron body.
Sur commande

WILO Stratos Maxo CPC767 is an intelligent wet-rotor circulation pump for HVAC and potable water applications. Features EC motor with integrated electronic power control, adapting output to specific system requirements. Cast iron construction ensures durability and reliability.

  • Rated flow: 14.16 m³/h at system conditions
  • Maximum flow: 27.55 m³/h
  • Maximum head: 13.97 m
  • Power: 0.57 kW (EC motor)
  • Efficiency: EEI 0.17 (top class)
  • Operating range: -10 to +110°C
  • Single-phase 230V, 50/60 Hz
  • IP rating: IPX4D

  • Marque
  • Référence
    CPC767
  • EAN13
    4062679195308
  • MPN
    CPC767

  • Weight
    19.2 kg
  • Phases
    1
  • Frequency
    50/60 Hz
  • Power input
    0.57 kW
  • Rated current
    2.49 A
  • EAN
    4062679195308
  • Pump Type
    Circulation
  • Maximum pressure
    10 bar
  • Pump body material
    Cast iron GG 25
  • Impeller material
    Polypropylene PP-GF
  • Rated flow
    14.16 m³/h
  • Maximum temperature
    110 °C
  • Energy Efficiency Index
    0.17
  • Maximum Flow
    27.55 m³/h
  • Maximum Head
    13.97 m
  • Model name
    Stratos Maxo 40/0.5-12
  • Minimum temperature
    -10 °C
