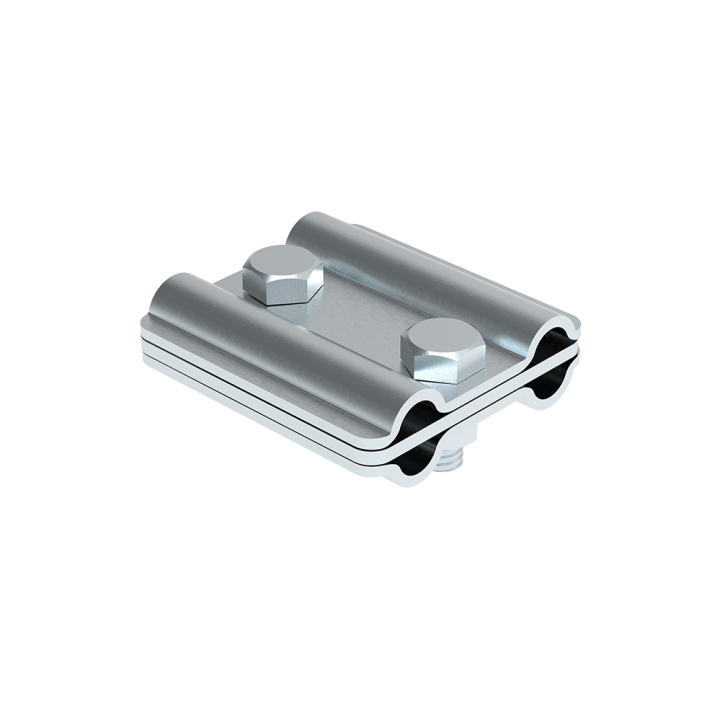

ELKO-BIS Horizontal Round Conductor Connector, 4-way, 8-10mm Diameter

ELKO-BIS Horizontal Round Conductor Connector, 4-way, 8-10mm Diameter

ELKO-BIS
1,12 € (Économisez 0,47 €)
0,65 €
HT
TVA 21% incluse : 0,79 €
Four-way parallel connector for round conductors 8-10mm diameter. Zinc-plated steel with 100kA lightning current capacity. For horizontal cable distribution systems.
Sur commande

ELKO-BIS four-way parallel connector joins horizontal round conductors up to 10mm diameter. Zinc-plated steel construction rated for 100kA lightning current (10/350µs waveform).

  • Connects four round conductors 8-10mm
  • 100kA lightning current rating
  • Zinc-plated steel construction
  • Two M8 mounting screws
  • Horizontal cable routing applications

  • Marque
  • Référence
    HEA906
  • EAN13
    5907676742577
  • MPN
    HEA906

  • Material
    Steel
  • Connector type
    Parallel connector
  • Height
    54 mm
  • Width
    56 mm
  • Depth
    26 mm
  • Conductors
    4
  • Surface Protection
    Zinc-plated
  • Mass
    0.176 kg
  • Wire diameter (round)
    8-10 mm
  • Lightning current rating (10/350 µs)
    100 kA
