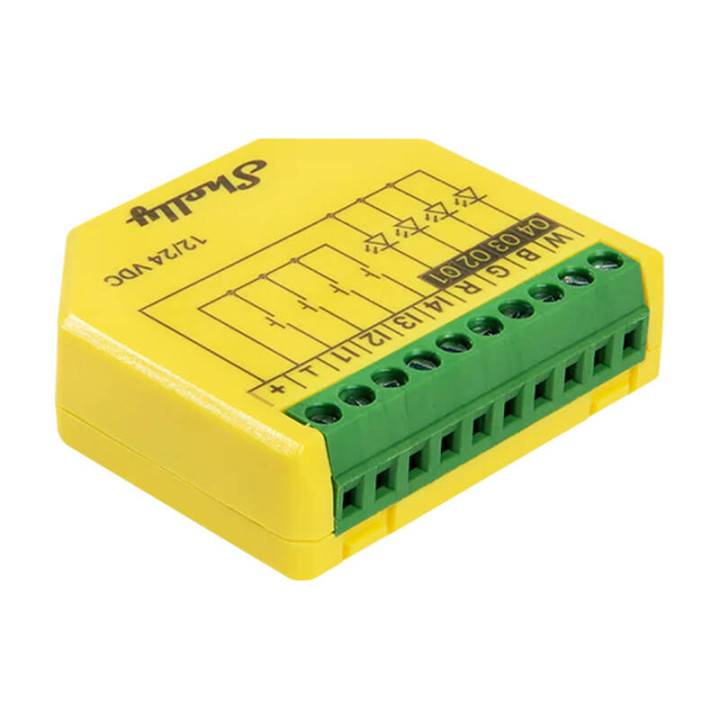

Shelly PlusRGBWPM LED Strip Controller, WiFi/Bluetooth

Shelly PlusRGBWPM LED Strip Controller, WiFi/Bluetooth

30,65 €
Tax excluded
IVA 21% inclusa: 37,09 €
Control RGBW LED strips with Shelly PlusRGBWPM. WiFi/Bluetooth, 12/24V, 4A per channel, energy monitoring. Smart home ready.

The Shelly PlusRGBW PM is a compact LED strip controller that lets you create personalized lighting atmospheres with ease. It supports 12V and 24V LED strips in White, RGB, and RGBW modes, offering 16 million colors and dynamic effects. Control it via the Shelly Smart Control app, voice assistants like Amazon Alexa, or integrate with Home Assistant. With built-in power and energy monitoring, overload protection, and a Wi-Fi repeater/BLE gateway, it enhances both your lighting and network. Perfect for under-cabinet lighting, accent strips, or whole-room ambiance.

  • RGBW Control: Supports 12/24V LED strips with 4A per channel (10A total).
  • Smart Connectivity: Wi-Fi and Bluetooth 4.2 with BLE gateway and Wi-Fi repeater.
  • Energy Monitoring: Real-time power and energy measurement with voltmeter and ammeter.
  • Flexible Automation: 20 schedules, webhooks, scripts, and MQTT support.
  • Compact Design: Fits in a wall box; dimensions 42x37x12 mm.

Use the Shelly PlusRGBW PM to bring smart, colorful lighting to any space without needing extra hubs. Its robust feature set ensures reliable performance and seamless integration with your smart home ecosystem.

  • Reference
    073547
  • In stock
    653 Items
  • ean13
    3800235265635
  • MPN
    PlusRGBWPM

  • Power supply
    12/24 VDC
  • Dimensions
    42 x 37 x 12 ±0.5 mm
  • Weight
    17 g
  • Housing material
    Plastic
  • Humidity
    30% - 70%
  • Schedules
    20
  • Mounting
    In a wall box
  • Ambient temperature
    -20 to 40 °C
  • Voltmeter accuracy
    ± 5%
  • Ammeter accuracy
    ± 10%
  • Flash memory
    4 MB
  • Scripts
    Yes
  • Mqtt
    Yes
  • Housing color
    Yellow
  • Bluetooth version
    4.2
  • Supply voltage
    12/24 VDC
  • Processor
    ESP-Shelly C38F
  • Bluetooth range indoor
    Up to 10 m
  • Bluetooth range outdoor
    Up to 30 m
  • Ammeter range
    0-10 A
  • Dimmable
    Yes
  • Pwm frequency
    22 kHz
  • Voltmeter range
    0-24 V
  • Power and energy measurement
    Yes
  • Clock frequency
    160 MHz
  • Ram
    400 KB
  • Brand
    Shelly
  • Model
    PlusRGBWPM
  • SKU
    073547
  • Product Type
    LED Strip Controller
  • EAN
    3800235265635
  • App Ecosystem
    Shelly
  • Control Protocol
    Wi-Fi
  • Smart / App Control
    Yes
  • Light Colour / Channel
    RGBW
  • Webhooks (URL shares)
    20 (5 URLs per webhook)
  • Maximum Control Current per Channel
    4 A
  • Maximum Total Current
    10 A
  • Maximum Control Voltage
    24 VDC
  • No-load Detection Threshold
    0.5 VA per channel
  • Built-in Temperature Sensor
    Yes
  • Wi-Fi Range Indoor
    Up to 30 m
  • Wi-Fi Range Outdoor
    Up to 50 m
