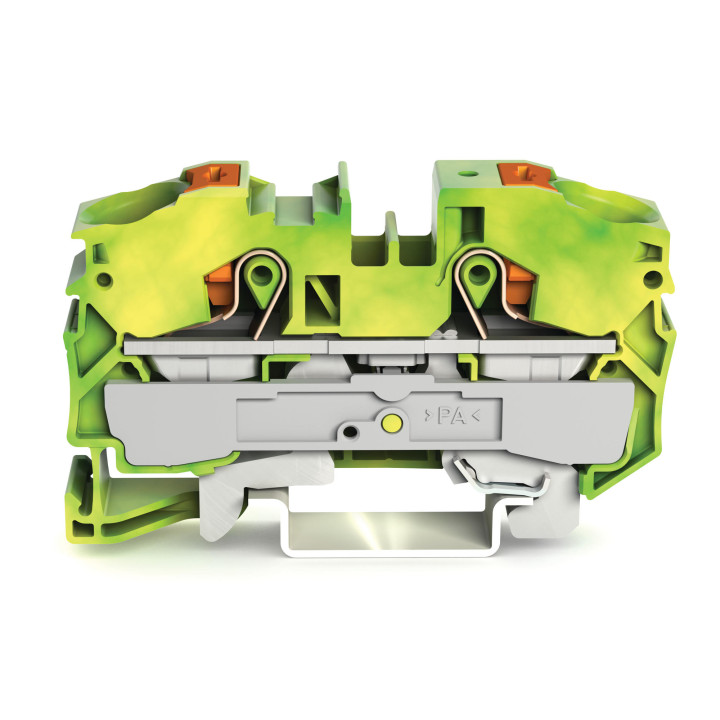

WAGO TOP JOB'S 2216 Spring Terminal 1P×2 16mm² Yellow-Green

WAGO TOP JOB'S 2216 Spring Terminal 1P×2 16mm² Yellow-Green

€4.69
Tax excluded
Incl. 21% VAT: 5,67 €
WAGO TOP JOB'S spring-loaded terminal block, 1-pole 2-position, 0.5-25mm² wire gauge, 16mm² rated. Push-button connections, DIN rail mount, yellow-green, PEN capable.
Out-of-Stock

Professional spring-loaded terminal block from WAGO's TOP JOB'S series for rapid, reliable conductor connections. Single-pole with 2 connection positions accommodating 0.5-25mm² unshielded stranded wire or 2.5-16mm² solid/ferrule conductors. Push-button operation eliminates maintenance-prone screw terminals. DIN 55mm rail mounting with thermoplastic insulation rated to 105°C. Yellow-green colour with PEN function support.

  • Spring-loaded push-button terminal block, 1P×2
  • Wire capacity: 0.5-25mm² unshielded, 2.5-16mm² ferrule
  • DIN 55mm rail mounting, thermoplastic insulation
  • Operating temperature -20 to +105°C
  • Yellow-green, PEN capable, ATEX rated

  • Reference
    CIE552
  • EAN13
    4055143732765
  • MPN
    CIE552

  • Operating temperature
    -20 to 105 °C
  • Mounting type
    DIN rail 55mm
  • Connection type
    Push-button spring-loaded
  • Poles
    1
  • Terminal type
    Spring-loaded terminal block
  • Insulation material
    Thermoplastic
  • Color
    Yellow-green
  • GTIN/EAN
    4055143732765
  • Positions per pole
    2
  • Wire gauge (stranded, unshielded)
    0.5-25 mm²
  • Wire gauge (stranded with ferrule)
    2.5-16 mm²
  • Wire gauge (solid)
    2.5-16 mm²
  • Dimensions (W×H×D)
    12 × 69.8 × 37.1 mm
  • PEN capable
    Yes
