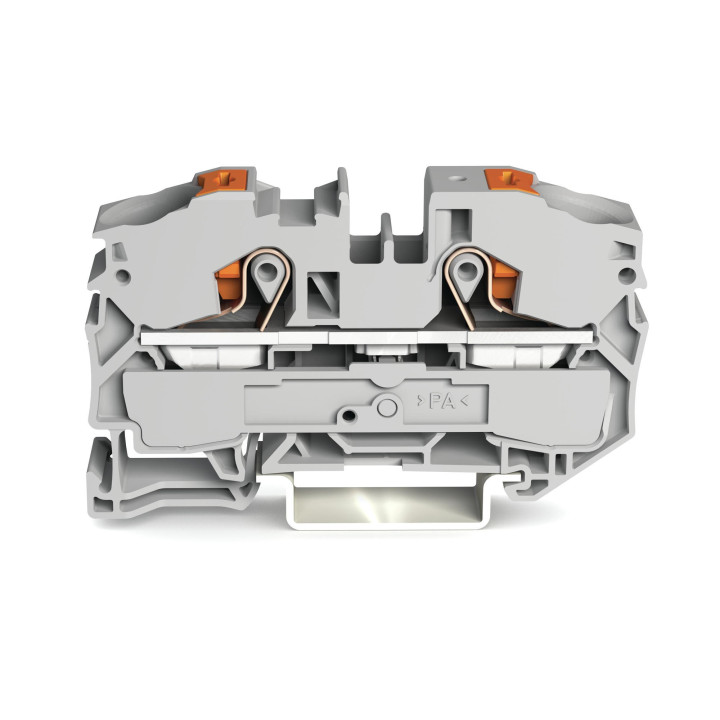

WAGO CGY432 Terminal Block 1Px2 16 mm² Spring Clamp

WAGO CGY432 Terminal Block 1Px2 16 mm² Spring Clamp

€2.21
Tax excluded
Incl. 21% VAT: 2,67 €
1-level, 2-position terminal block for DIN rail mounting, spring clamp connection, 76A rated current, 0.5-25 mm² wire compatibility.
Out-of-Stock

Compact DIN-rail mounted terminal block with secure spring-clamp connections for reliable conductor termination.

  • Rated current: 76 A at 800 V
  • Spring clamp eliminates screw loosening and maintenance
  • Accepts wire 0.5–25 mm² (fine stranded) or 2.5–16 mm² (solid/ferrule)
  • Single-level design with 2 positions
  • Thermoplastic insulation housing
  • Operating range: -20 to 105 °C

  • Reference
    CGY432
  • EAN13
    4055143732727
  • MPN
    CGY432

  • Operating temperature
    -20 to 105 °C
  • Weight
    0.025 kg
  • Rated voltage
    800 V
  • Connection type
    Spring clamp
  • Mounting method
    DIN rail 55 mm
  • Height
    69.8 mm
  • Rated current
    76 A
  • Width
    12 mm
  • Color
    Gray
  • Positions per level
    2
  • Levels
    1
  • Wire cross-section (fine, no ferrule)
    0.5-25 mm²
  • Wire cross-section (fine, with ferrule)
    2.5-16 mm²
  • Wire cross-section (solid)
    2.5-16 mm²
  • Wire cross-section (stranded)
    0.5-16 mm²
  • Insulation housing
    Thermoplastic
