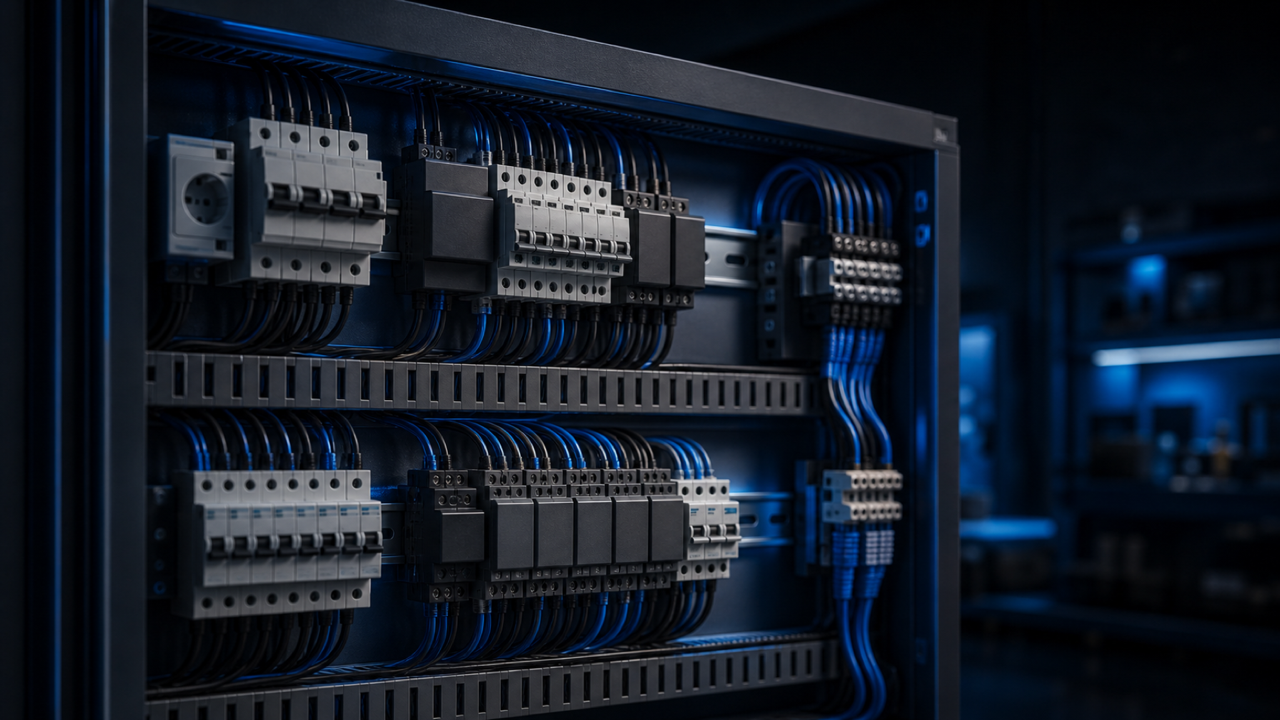

KNX Panel Assembly
Professional KNX control panel assembly — DIN rail layout and device spacing for KNX modules, IEC 60445 cable labelling standards with Panduit/Brady labellers, and a systematic testing and commissioning checklist for smart building panels.
Example: KNX Villa Panel Layout
A fully annotated 3-row DIN rail panel for a residential KNX installation — AC protection row, KNX automation row, and terminal block row with colour-coded wiring.
DIN Rail Component Library
Standard DIN rail modules used in KNX panels — all drawn to TH35 scale (1 TE = 18mm).
MCB 1P C251 TE
MCB 1P C161 TE
MCB 3P C633 TE
RCD 2P 30mA2 TE
Contactor 2P2 TE
SPD Type 21 TE
Energy Meter2 TE
KNX PS MDT4 TE
Actuator 4CH4 TE
Blind Actuator2 TE
IP Router2 TE
DALI PSU2 TE
PE Terminal0.5 TE
N Terminal0.5 TEScale note: 1 TE (Teilungseinheit) = 18mm on TH35 DIN rail. Standard modular enclosures come in 1 row of 24 TE (AP flush), 2 rows of 24 TE, or 3 rows of 24 TE. KNX actuators typically occupy 4–8 TE, while MCBs are 1 TE per pole.
Assembly Guides
DIN Rail Layout for KNX Automation Panels: Zone Separation and Device Spacing
Best practice DIN rail layout for KNX control panels — zone separation between high-voltage (MCBs, contactors) and SELV (KNX, 24VDC), minimum spacing requirements for KNX DIN modules, busbar layout, cable duct sizing for wire management, and thermal derating for enclosed enclosures.
Cable Labelling Standards for KNX Panels: IEC 60445, Colour Codes, and Panduit Labellers
IEC 60445 and HD 308 S2 colour code requirements for KNX panel wiring — green/yellow earth, blue neutral, brown/black/grey phases, red 24VDC, and KNX TP (red/black twisted pair). Panduit MP200 and Brady M611 label printer configuration for cable markers, terminal labels, and DIN module identification.
KNX Panel Testing and Commissioning Protocol: From Insulation Test to ETS6 Download
Systematic KNX panel testing checklist — insulation resistance test (Metrel MI3102H, 500V, minimum 1 MΩ), earth continuity with KMT 50A tester, bus voltage verification (21.6-32V DC at furthest device), ETS6 interface assignment, individual address download verification, and group monitor functional test sequence.
